FDU-160i

Intelligent Frequency Distribution Amplifier

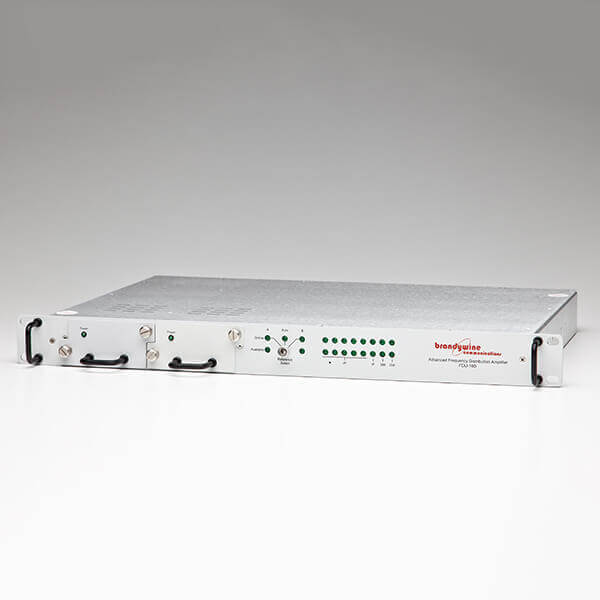

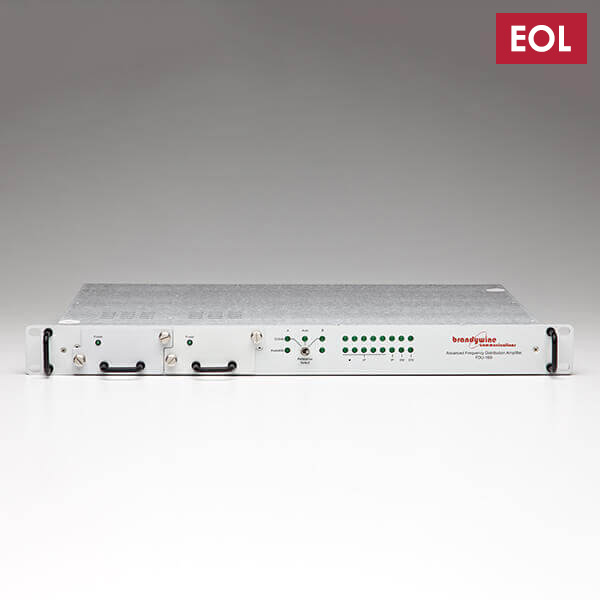

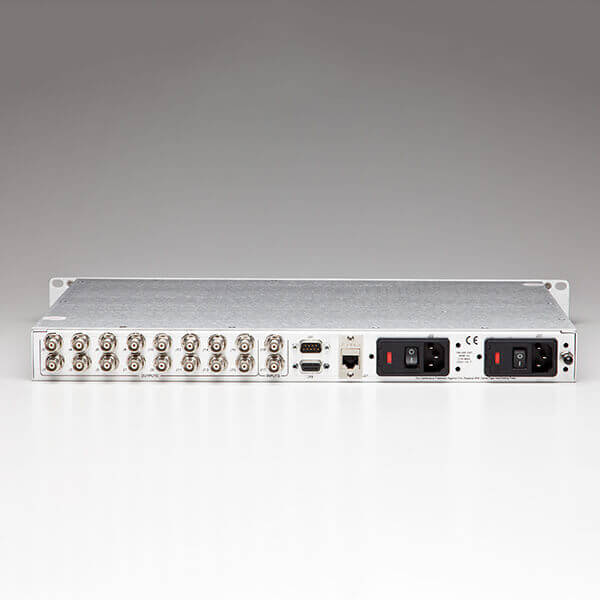

The FDU-160i is a high performance signal distribution amplifier designed for use with Brandywine high precision time and frequency sources contained in a compact 1U rack-mount chassis.

The FDU accepts two sets of inputs, comprising the reference frequency (typically 10MHz) and status from the source. The FDU provides automatic changeover should one of the on-line source inputs fail.  Manual source select override is available on the front panel, or through the Ethernet interface.

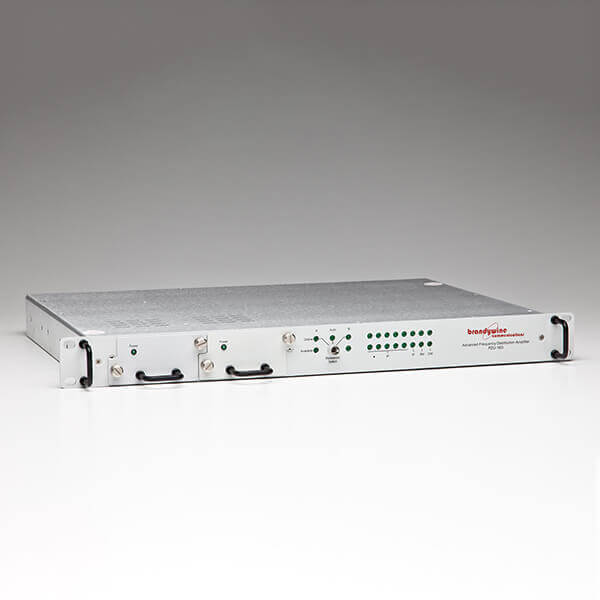

A variety of status indicators are located on the front panel for instant visual feedback, together with manual controls for source selection. A 10/100 base T Ethernet interface provides full control over the functionality of the system, including reference selection and output amplitude (on a per channel basis). User control of the unit is via a built-in Web Browser with user-friendly graphical interface, or via SNMP v2c for system applications.

Applications for the FDU-160i include secure communications systems, satellite ground stations, digital television broadcasting and any system requiring highly reliable frequency outputs.

No matching variations found.

Intelligent Frequency Distribution Amplifier - 10MHz version

Model #FDU-160i-10MHz

DownloadSpec Sheet

Get Model Info

Intelligent Frequency Distribution Amplifier - 5MHz version

Model #FDU-160i-5 MHz

DownloadSpec Sheet

Get Model Info

Intelligent Frequency Distribution Amplifier - 5MHz/15dBm version

Model #FDU-160i-5 MHz/15dBm

DownloadSpec Sheet

Get Model Info

Intelligent Frequency Distribution Amplifier - 10MHz version with Hitless Switching

Model #FDU-180i

Get Model Info

Variations

Model NumberDescriptionOscillator TypePower SupplyForm FactorPower TypeOutput FormatNo. of OutputsInput FormatNo. of Inputs
FDU-160i-10MHzIntelligent Frequency Distribution Amplifier - 10MHz versionNoneDual AC1UAC10 MHz1610 MHz2
FDU-160i-5 MHzIntelligent Frequency Distribution Amplifier - 5MHz versionNoneDual AC1UAC5 MHz165 MHz2
FDU-160i-5 MHz/15dBmIntelligent Frequency Distribution Amplifier - 5MHz/15dBm versionNoneDual AC1UAC5MHz at 15 dBm levels165MHz at 15 dBm levels2

Features

  • Network Enabled Frequency Distribution Amplifier
  • Dual Frequency Inputs with Auto Failover
  • Low Phase Noise Reference Frequency Outputs
  • Programmable per channel amplitude
  • 1U 19” rack mount
  • Redundant Hot Swappable Power Supplies

Specifications

Frequency 10 MHz, +/- 5PPM
Amplitude and Impedance 0.5-1Vrms 50 Ω
Isolation Transformer Coupled
Number of Inputs 2
Connector Type BNC
Input Selection Manual, Auto
Number of Inputs 2
Signal Type TTL
Active Level Selectable for active high or low
Action Forces on-line changeover
Number of Outputs 16
Frequency Same as input, 10 MHz
Optional 1-20, 1, 5 MHz
Output Level 5dBm to +13dBm, short-circuit proof
Connector Type BNC
Harmonic Distortion -40 dBc
Cross Talk -80 dBc
Spurious -80 dBc
Additive Phase Noise@10MHz
1 Hz -132 dBc
10 Hz -142 dBc
100 Hz -155 dBc
1 kHz -163 dBc
10 kHz -163 dBc
Network Interface
Interface Type 10/100 BaseT
Protocols HTTP, DHCP, SNMP V2c, IPV4
Connector Type RJ45
Display Type 16 Bicolor LED
Functions Output status, Ethernet settings
Type Dry relay form C contacts, Ethernet SNMP trap
Alarm Function Summary of all input/output alarms (relay), Individual input, output, power (Ethernet)
Redundancy Dual Redundant, Single supply maintains complete unit
Voltage 90-240 VAC 50/60Hz, 18-36V DC Optional, 36-72VDC Optional
Power Consumption <15W
Environmental
Temperature
Operating -10 to +55ºC non condensing
Storage -40 to +85ºC
Product Safety EN60950-1: 2006 + A11-2009 +A1:2010 A12:2011
EMC Emmission EN55022 Class A, EN50082-2, FCC Chapter 15 Class A
