Features
- IRIG A & B, NASA 36 and 1 PPS inputs standard
- HaveQuick sync option
- Propagation delay compensation
- Zero latency time reads
- Match Time output
- IRIG B time code output
- External Event time tags
- On-board GPS receiver option
- Three user programmable rates
- Conduction Cooled Version
Options
| Model Number | Description | Signaling Level | Cooling Type | Power Type | Output Format | Input Format |
|---|---|---|---|---|---|---|

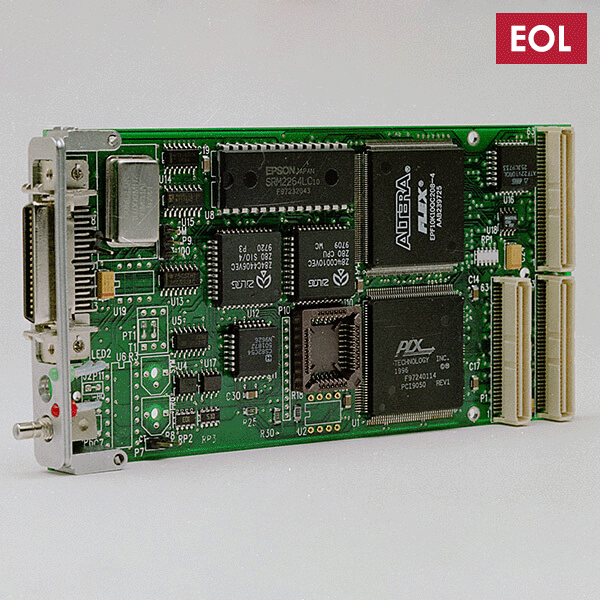

| PMC-SYNCCLOCK32 | Synchronizable Clock for PMC Bus | +5V | Air Cooled | PMC Bus | PMC Bus, IRIG A, IRIG B, NASA 36, IRIG G | IRIG A, IRIG B, NASA 36, XR3, 109-60 |
| PMC-SYNCCLOCK-UNIV | Universal Synchronizable Clock for PMC Bus | +3.3V, +5V | Air Cooled | PMC Bus | PMC Bus, IRIG A, IRIG B, NASA 36, IRIG G | IRIG A, IRIG B, NASA 36, XR3, 109-60 |
| PMC-GPSCLOCK | Synchronizable Clock for PMC Bus with GPS Input | +5V | Air Cooled | PMC Bus | PMC Bus, IRIG A, IRIG B, NASA 36, IRIG G | GPS, IRIG A, IRIG B, NASA 36, XR3, 109-60 |
| PMC-SYNCCLOCK-UNIV-CC | Universal Synchronizable Clock for PMC Bus with Conduction Cooled | +3.3V, +5V | Conduction Cooled | PMC Bus | PMC Bus, IRIG A, IRIG B, NASA 36, IRIG G | IRIG A, IRIG B, NASA 36, XR3, 109-60 |
