VPX Timing Card

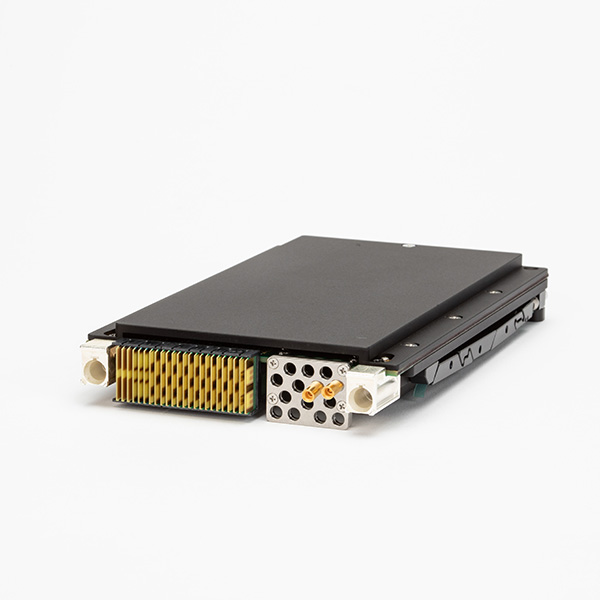

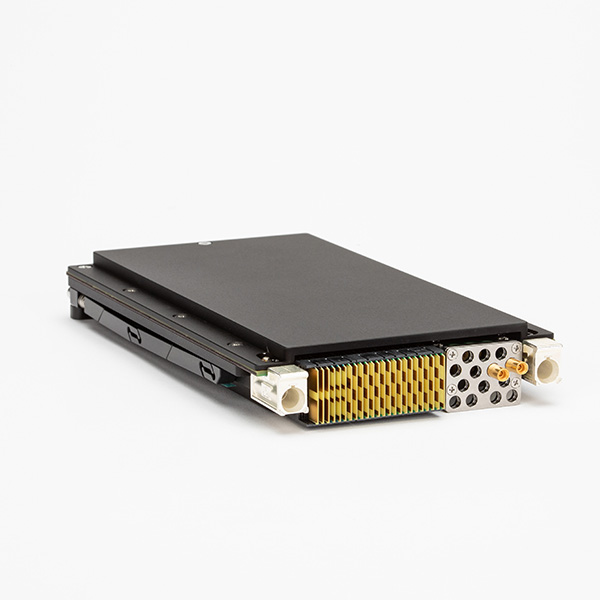

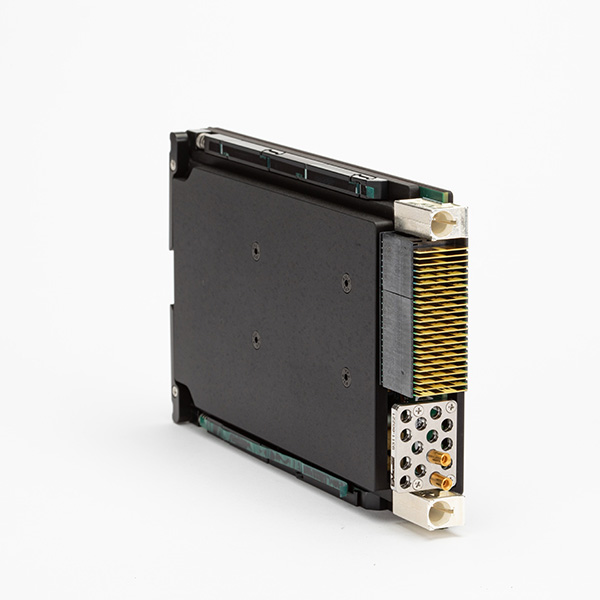

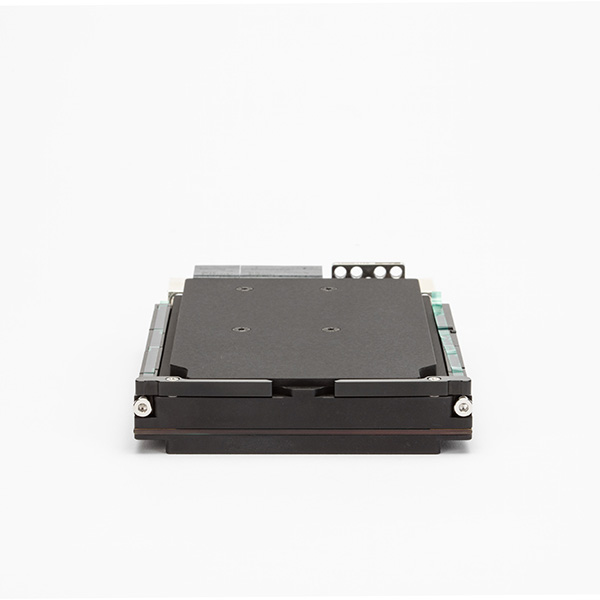

3U VPX Timing Module

The VPX Timing Card offers a complete solution set for all PNT needs. This ruggedised conduction-cooled unit provides versatile, multifunction, highly-stable clock references for any environment.

The VPX Timing Card provides three (3) 1000BASE-KX Ethernet ports, with optional software upgrade for faster 10GBASE-KR. The Ethernet ports support PTP (IEEE 1588-2008) and NTP functionality (RFC 5905) with both server and client capabilities.

If you are in the market for clothes, our platform is your best choice! The largest shopping mall!

Features

  • SOSA Aligned
  • 3U VPX Form-Factor
  • Reduced SWaP applications
  • Ruggedization Level 200
  • 11 Radial Clock Outputs
  • OpenVPX Backplane support for 1000BASE-KX or 10GBASE-KR
  • Optional Chip Scale Atomic Clock (CSAC) Holdover
  • Optional Low Phase Noise (LPN) Analog output
  • Optional secure GPS (M-code)
  • Optional Timecode I/O

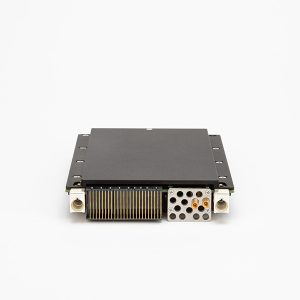

The P1 backplane provides 11 individually programmable AUX (1PPS) and REF (10MHz-3GHz) radial clocks, with standard output at LVDS levels. Non-standard LVPECL output levels are available for lower jitter requirements. These radial clocks have a maximum group skew of ±25 picosecond between pairs, while the PPS inputs to outputs phase alignment is maintained within ±10ns.  Furthermore, each clock phase can be further tuned within ±25 picoseconds to calibrate module radial clock routing.

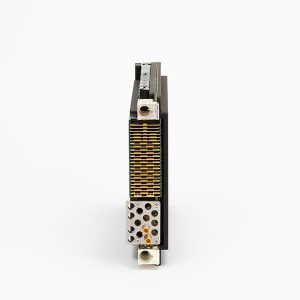

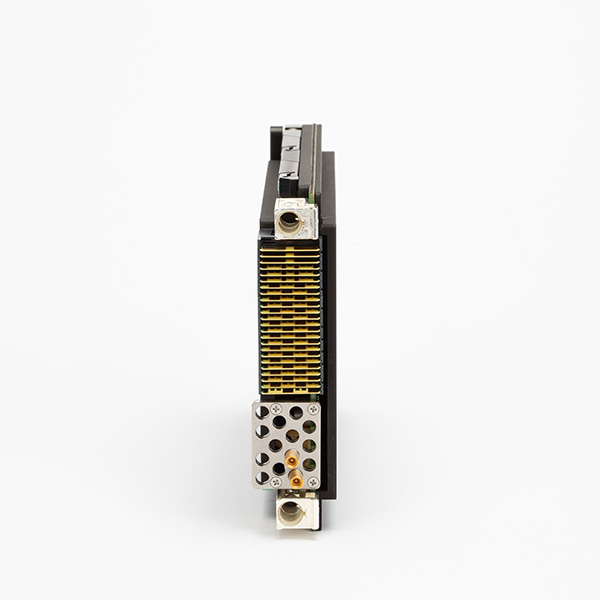

The P2 backplane is fitted with a 14-port VITA 67.3C aperture (10-port optional), providing standard inputs for 1PPS and 10MHz synchronization sources. It optionally supports commercial GNSS, secure M-Code GPS, analog PPS and sine outputs, as well as timecode inputs and outputs.

Developed timecode I/O modules include: HQ1, HQ2, ICD-GPS-060 (PTTI HQ), IRIG-AM, IRIG-DCLS, NMEA 0183, STANAG 4372 (Saturn i & ii), STANAG 4430 (XHQ) and MIL-STD-1553.

The VPX Timing card can be optionally configured with a CSAC for enhanced holdover accuracy while operating in reference-denied environments. As an added feature the raw GNSS data can be distributed via multicast from the module for downstream processing.

To facilitate higher level integration, selected 3rd party source code is available to build status and control applications software on platforms running almost any operating system. e.g. Single Board Computer (SBC). Applications connect using gRPC over HTTP via Ethernet or even locally using RS-232 console access via localhost.

Additionally, the unit can be outfitted with a triaxial MEMS-based IMU with multi-layered Kalman filtering for increased position and navigation accuracy.

Specifications

General Input Specifications
1PPS stability to GPS time ± 53ns
1PPS Stability to UTC Time ± 200ns
Frequency Stability (OCXO) 5x10-9
Frequency Stability (CSAC) 3x10-10
Phase Accuracy, 100MHz to 1PPS ± 10ns
Holdover ± 26µs over 24 hours
Long Term Oscillator Aging without GPS Aging, monthly: <3x10-10
Aging, yearly: <1x10-9
Serial Controls to CSAC, SAASM GPS (optional) 3.3V
SAASM Key-Zeroize CMOS RS232 message to SAASM GPS
External GPS Antenna Connection Active 3.3V Antenna, L1 and L2, Maxtenna
GNSS Receiver – M-Code GPS (optional) 12 channels, L1 and L2, M-Code, DS101 Key and zeroize
General Output Specifications
VITA 67.3C Connector Output 10/100 MHz RF
Backplane Radial Clocks 11 Individually programmable output clocks
Backplane Radial Output Clock Frequency 3-3000 MHz
1PPS Output LVDS, 1.125 to 1.375 offset, Vod 250-450mV
100MHz output LVDS, 1.125 to 1.375 offset, Vod 250-450mV
Environmental
Size 3U VPX CC
Warm Up Time <4 minutes
Power Consumption (with SAASM GPS) Typ: 11.4W
Max: 12.1W
Power Consumption Typ: 10.9W
Max: 11.6W
Operating Temperature -40°C to +85°C
G-sensitivity MIL-STD-810, Method 514.6, Figure 514.6E-1, 7.7 gRMS, (General Minimum Integrity Exposure)
